If you’re replacing an asphalt shingle roof, this is usually the first real decision you make. Everything else — underlayment, ice and water shield, flashing, ventilation — follows a fairly standard playbook. The shingle itself is where you have a genuine choice, and where a contractor’s quote can swing.
Here’s what actually separates the two, what it means in this climate, and when each one makes sense.

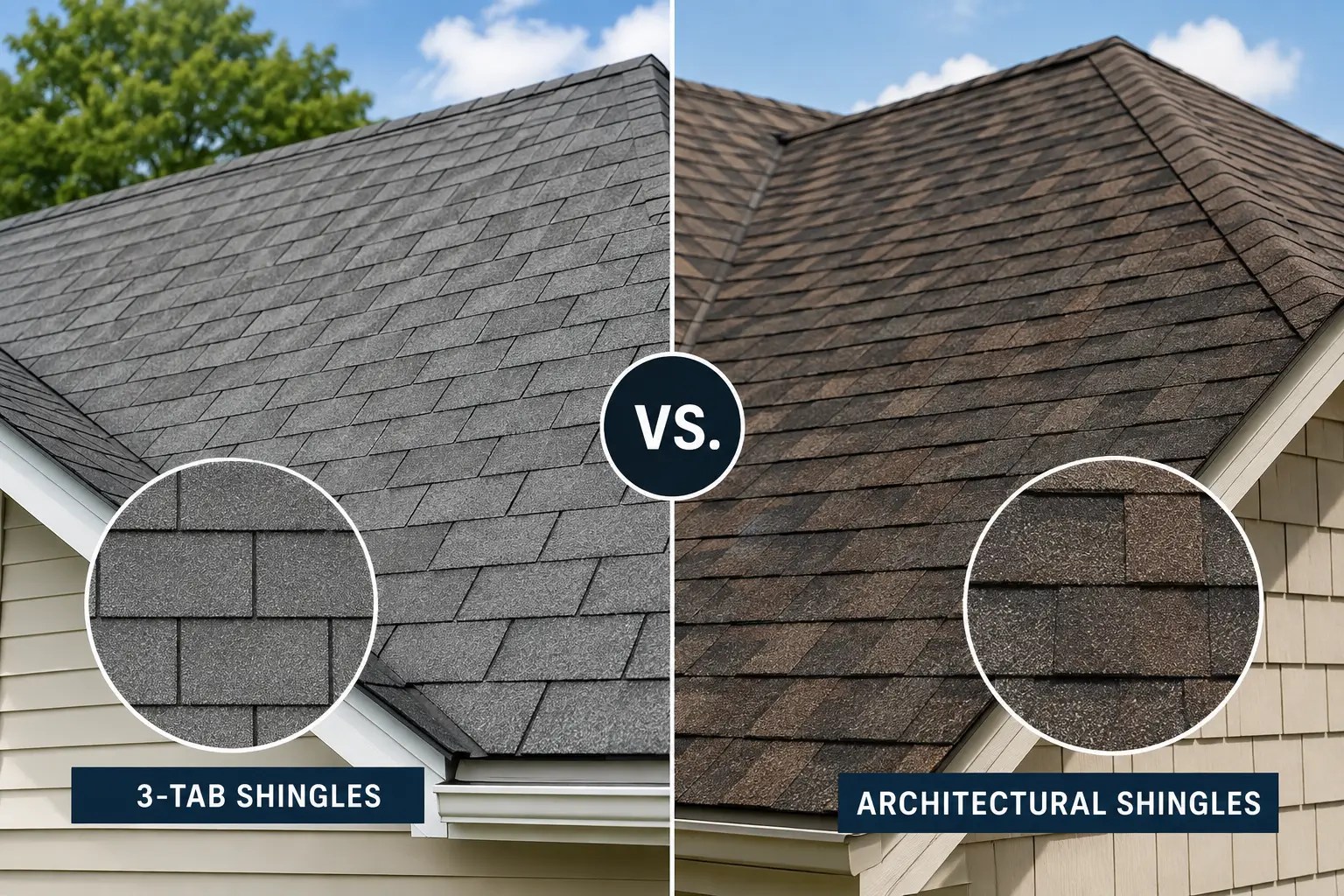

What a 3-Tab Shingle Is
A 3-tab is a single layer of asphalt-saturated fiberglass mat with granules on top, cut with two slots so each strip looks like three separate tabs. Every shingle is the same thickness top to bottom. Laid on a roof, it reads as a flat, uniform surface with even lines.
Typical specs:
- Weight: roughly 225–250 lbs per square (100 sq. ft.)
- Wind rating: 60 mph, sometimes 70 mph
- Manufacturer warranty: 25 years, prorated
- Realistic service life in Chicagoland: 15–20 years
What an Architectural Shingle Is
Architectural shingles — also called dimensional or laminated shingles — are built from two or more layers of shingle material bonded together. The bottom layer is a full mat; the top layer is a cut pattern laminated onto it. That extra layer is what creates the shadow lines and the thicker, varied look.
Typical specs:
- Weight: roughly 350–450 lbs per square
- Wind rating: 110–130 mph depending on brand and installation
- Manufacturer warranty: limited lifetime, prorated after an initial non-prorated period
- Realistic service life in Chicagoland: 22–30 years
That weight difference is the short version of the whole comparison. There is close to twice as much material on the roof.
Wind Is the Deciding Factor Around Here
We get straight-line winds off the prairie and off the lake, and we get them regularly. A 3-tab shingle has three exposed tab edges per strip, and each one is a place wind can get underneath. Once the sealant strip on a 3-tab lets go — and it does let go as the shingle ages and the asphalt dries out — those tabs start flapping. The next 50 mph gust takes them off the roof.
We see it every spring. Whole sections of 3-tab roofs in Elmhurst, Berwyn, Naperville, wherever, stripped down to the felt on the windward slope, while the architectural roof next door lost a few caps at the ridge and nothing else.
Architectural shingles are heavier, they don’t have cutouts, and the laminated construction means the exposed edge is a solid double-layer bond. Installed to spec with a proper starter strip along the eaves and rakes, they hold in wind that peels 3-tabs.
Hail and Insurance
Hail damages both. But two things matter here.
First, an impact-resistant Class 4 shingle — the kind that can knock 10–25% off your homeowners insurance premium with some carriers — is only made in architectural profiles. You cannot buy a Class 4 3-tab. If you want the discount and the added durability, architectural is your only path.
Second, adjusters treat these differently in practice. A 3-tab roof that’s 18 years old with worn granules and brittle tabs is going to get a lot of scrutiny, and depreciation hits hard on a 25-year prorated warranty. A newer architectural roof with a lifetime warranty is a cleaner claim.
Freeze-Thaw and Attic Heat
Chicago runs a shingle through 40 to 60 freeze-thaw cycles a year. Add 140-degree attic temperatures in July and hard UV exposure on south and west slopes. Asphalt shingles fail because the asphalt loses its volatile oils, gets brittle, and cracks. More asphalt in the shingle means more margin before that happens.
That’s the real reason architectural shingles last longer here — not the warranty paperwork, just the fact that there’s more material to lose.
Worth saying plainly: neither shingle will reach its rated life over an unventilated attic. If you’ve got soffits that were painted shut in 1994 and a couple of box vents on the back slope, you’re cooking the underside of your roof deck and baking the shingles from below. We check intake and exhaust ventilation on every replacement estimate, and we’d rather talk you into fixing that than into a premium shingle over a bad attic. A properly ventilated 3-tab roof will outlive a poorly ventilated architectural roof.
Cost: Smaller Difference Than People Expect
This is where homeowners are usually surprised.
On a full replacement, the shingle itself is only one line item. Tear-off, disposal, underlayment, ice and water shield at the eaves and valleys, drip edge, pipe boots, step flashing, ridge vent, and labor are all essentially the same regardless of which shingle goes on top. The labor to install architectural is marginally higher because the bundles are heavier, but it’s not a dramatic difference.
On a typical Chicagoland house, the total spread between a 3-tab roof and a standard architectural roof usually lands somewhere in the range of a few hundred to about a thousand dollars. On a roof that’s costing you five figures and needs to last 25 years, you’re paying a small percentage more for roughly 30–50% more service life and double the wind rating.
There’s also a supply reality: manufacturers have been scaling back their 3-tab lines for years. Color selection is thin — often four or five options versus twenty-plus in architectural — and in some product lines 3-tab has been discontinued outright. Sometimes the price gap is nearly nothing because the 3-tab is a low-volume item.
When 3-Tab Still Makes Sense
We install 3-tab when there’s a reason for it:
- Matching an existing roof. If you’re replacing one slope of a roof that’s otherwise 3-tab and in decent shape, matching the profile keeps it looking right.
- Detached garages and sheds. Lower stakes, lower exposure, and the aesthetics don’t drive property value.
- Rental property with a short hold period. If you’re selling in two years, the math can work differently.
- Hard budget ceilings. A 3-tab roof that’s properly installed with good underlayment and flashing is a far better outcome than deferring a replacement for three more years while water gets into the deck. A functioning roof beats a perfect roof you can’t afford.
- HOA or historic requirements that specify the flat profile.
Outside of those, architectural is the answer for almost every primary residence in the Chicago area.
Installation Matters More Than the Label
A premium architectural shingle installed badly will fail faster than a 3-tab installed correctly. Things we look for:
- Nailing zone. Laminated shingles have a specific nail line, and on some brands it’s about an inch wide. Nails driven high — above the line, into the single-layer section — don’t catch the shingle below. That roof blows off in the first real storm and the manufacturer won’t cover it.
- Nail count. Four nails is the standard minimum; six is required in high-wind applications and for most enhanced warranties. In this wind zone, six is the right call.
- Starter strip. A proper factory starter along eaves and rakes, not a course of upside-down shingles. This is the single most common corner cut we find on blown-off roofs, and it voids wind warranties.
- Ice and water shield. In Chicagoland, at minimum from the eave edge to at least 24 inches inside the exterior wall line, plus valleys and around penetrations. Ice dams are not a maybe here.
- Ridge caps that match the shingle line. Cut-up 3-tabs used as caps on an architectural roof will fail first and can affect warranty coverage.
The Short Answer
For a house in the Chicago area that you plan to keep, architectural shingles are the better buy. Better wind performance, longer life in a freeze-thaw climate, access to impact-rated products and insurance discounts, a stronger warranty, and better resale appearance — for a modest increase over the total cost of the job.
Three-tab has legitimate uses, and we’ll install it when it’s the right call. It just isn’t the right call on most Chicagoland homes anymore.
If you want a straight comparison on your specific roof — including what the ventilation and decking look like, which drive lifespan more than shingle brand does — AST Contracting Construction crew ‘ll come out, get on the roof, and give you both numbers side by side.
